Project description
With the rapid development of new energy and new materials around the world, new battery materials in the field of widely coated batteries have also become an emerging field, which will develop rapidly in recent years, and its production process needs revolutionary auxiliary equipment to complete, for the battery (electromagnetic) materials (terpolymer materials, etc.) related characteristics, we developed battery material drying equipment should also be delivered.
Ternary material (Ternary)' Merriam-webster is the leading international dictionary. Three yuan Is defined as ' Having three elements, parts, or divisions or arranged in threes ' . Therefore, ' Ternary material ' It refers to the whole material composed of three chemical components (elements), components (elemental and compound) or parts (parts), including alloys, inorganic non-metallic materials, organic materials, polymer composite materials, etc., which are widely used in mineral extraction, metal smelting, material processing, new energy and other industries.
Ternary material is lithium cobaltate LiCoO2, ternary material is lithium nickel-cobaltmanganate Li(NiCoMn)O2, ternary composite cathode material precursor products, nickel salt, cobalt salt, manganese salt as raw materials, the ratio of nickel cobalt manganese can be adjusted according to actual needs, ternary material as a positive electrode battery relative to lithium cobalt battery safety, but the platform is too low. With a mobile phone (mobile phone cut-off voltage is generally about 3.4V) there will be an obvious sense of insufficient capacity, in some cottage mobile phones have been in the use of terpolymer batteries, especially batteries with relatively high capacity. Lithium iron phosphate capacity play is low, not suitable for the pursuit of high-capacity mobile phone battery requirements.
Lithium ion battery anode materials, such as ' Silicon Nanowire/Super-P/Polyaniline' And ' Silicon Nanoparticles/Carbon Nanotubes/Polypyrrole' It is a ternary negative electrode composite material. In June 2013, Nano Communications published the title ' Three-Dimensional Hierarchical Ternary Nanostructures for High-Performance Li-Ion Battery Anodes' The use of synthetic P-polypyrrole coated silicon nanoparticles and single-wall carbon nanotubes as electric strengthening agent has significantly improved the electrochemical cycle stability and rate performance, in addition, its low cost, high efficiency and good industrial process compatibility have attracted wide attention.

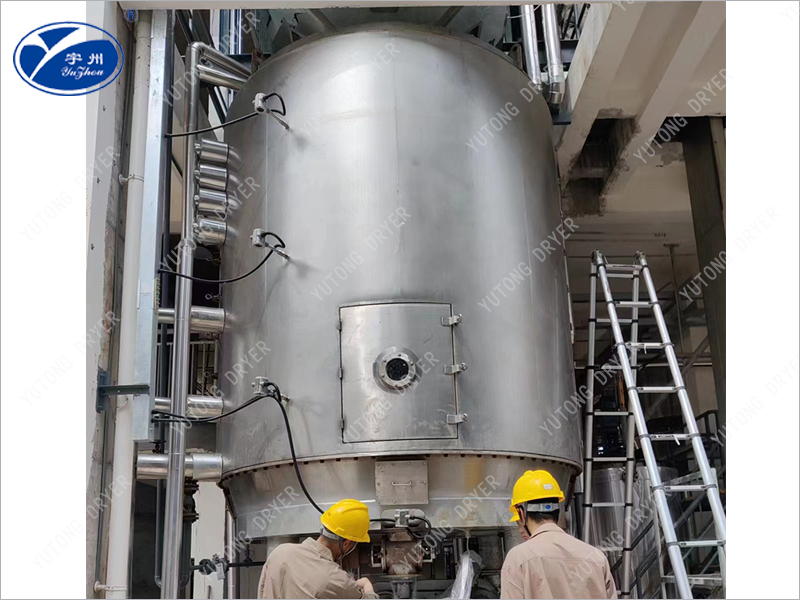

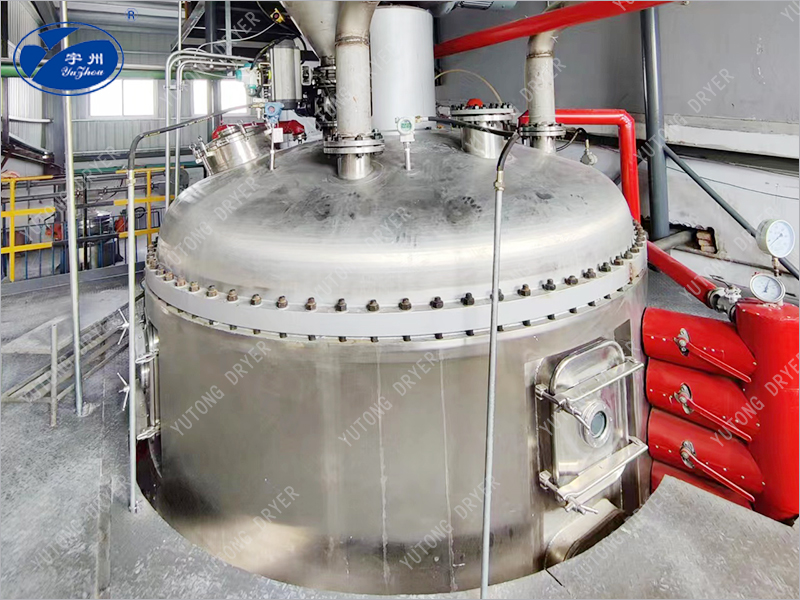

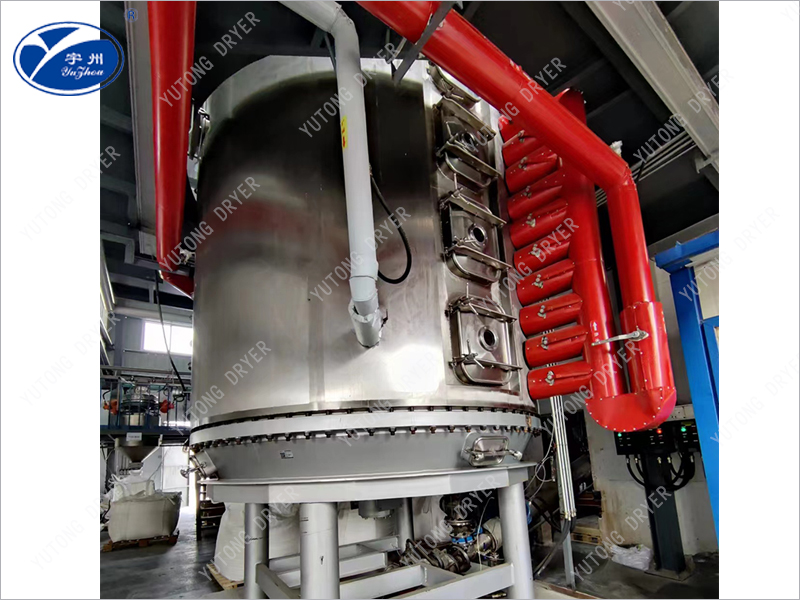

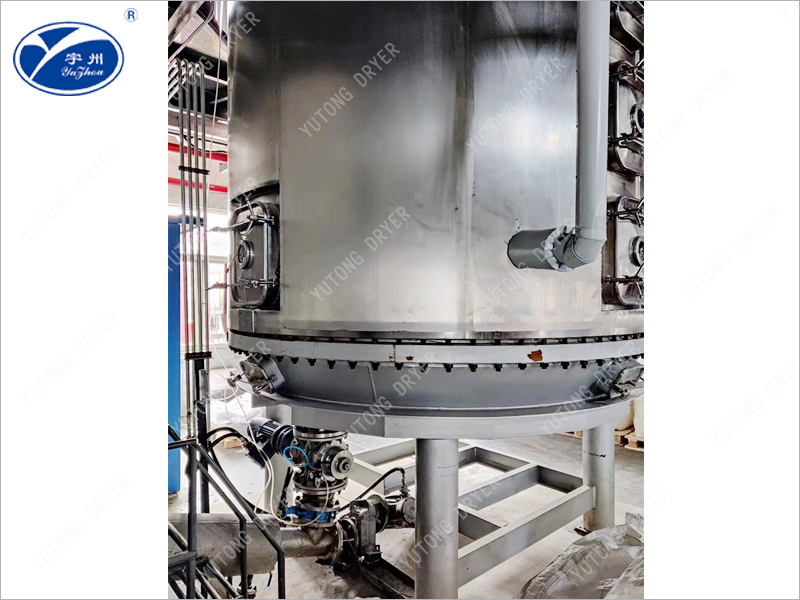

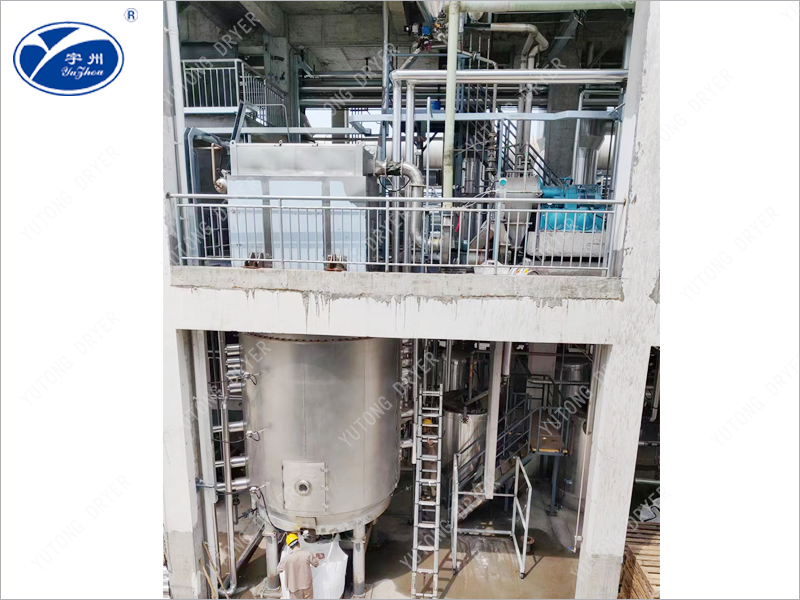

Ternary material selection disc dryer is a conductive continuous drying equipment. Its special structure and working principle determine that it has the characteristics of high thermal equivalent efficiency, low energy consumption, small footprint, simple configuration, convenient operation and control, good operating environment, etc., widely used in chemical industry, medicine, pesticide, food, feed, agricultural and sideline product processing and other industries drying operations. It has been well received in various industries. Now the production of atmospheric pressure, closed, vacuum three types. 1200, 1500, 2200, 3000 four specifications, S (carbon steel), B (contact material part uniform stainless steel), C (on the basis of B, add steam pipe, spindle and support for stainless steel, cylinder and top cover lining stainless steel). Three kinds of materials, drying area of 4-180M2, a total of hundreds of models of series products, and can provide matching seed player auxiliary equipment, can meet the needs of users for various materials drying.

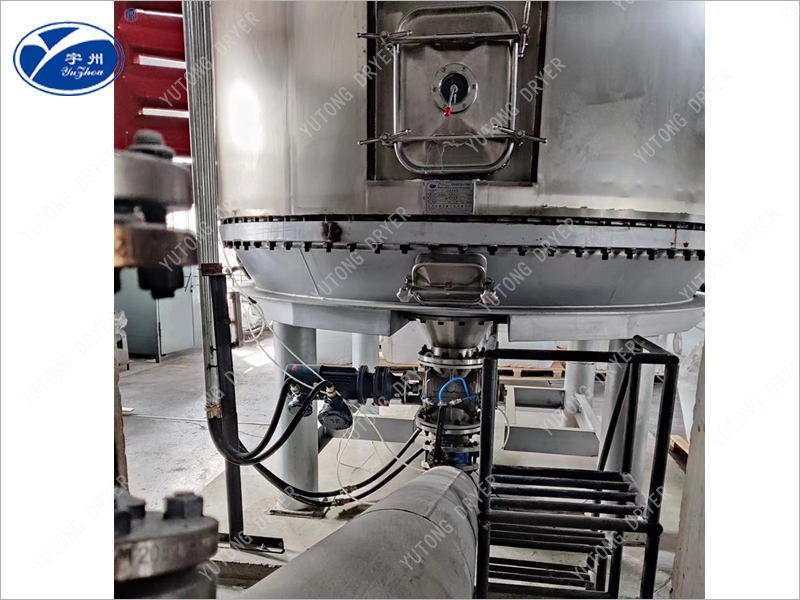

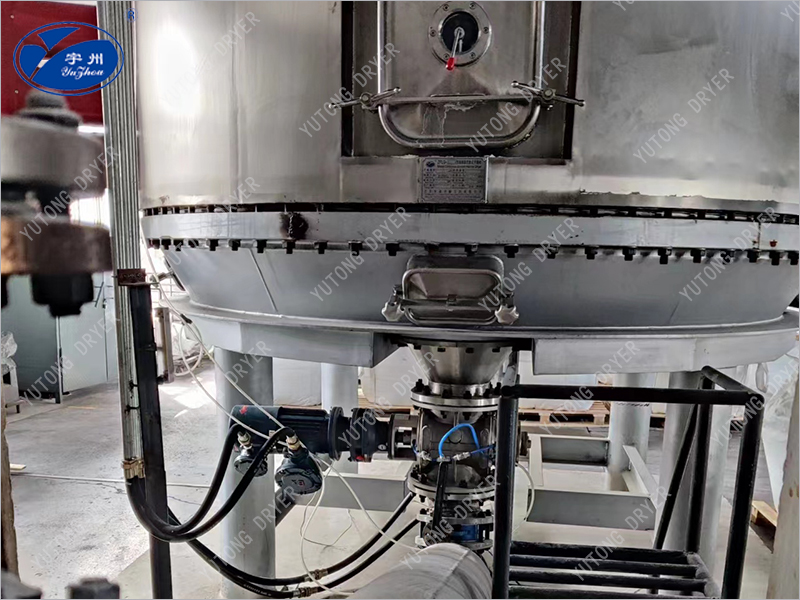

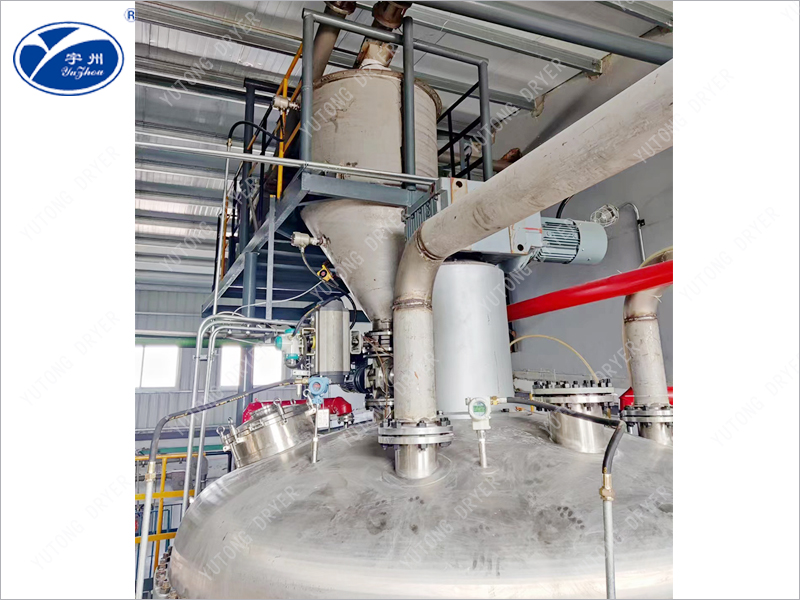

PLG series disc continuous dryer On the first layer of disc dryer, the rake arm with the rake blade does rotating motion, so that the rake blade continuously turns over the material, the material flows through the surface of the drying disc along the exponential helix, and the material on the small drying disc moves to the outer edge, and falls to the outer edge of the large drying disc below. The material on the large drying tray moves in and falls from the middle to the next layer of small drying tray, and the size of the drying tray is alternately arranged up and down, so that the material can continuously flow through the whole dryer, the heating medium is fed into the hollow drying tray, and the heating medium is exported from one end to the other end, and the dried material falls to the bottom of the shell from the latter layer of drying tray, and is moved by the rake leaf to the material port and discharged. The steam evaporates out of the water is discharged by the moisture outlet set on the top, the dust is recovered by the pulse dust collector, and the tail gas is discharged out of the air by the moisture exhaust fan. Dry material discharged from the bottom can be packaged directly.
